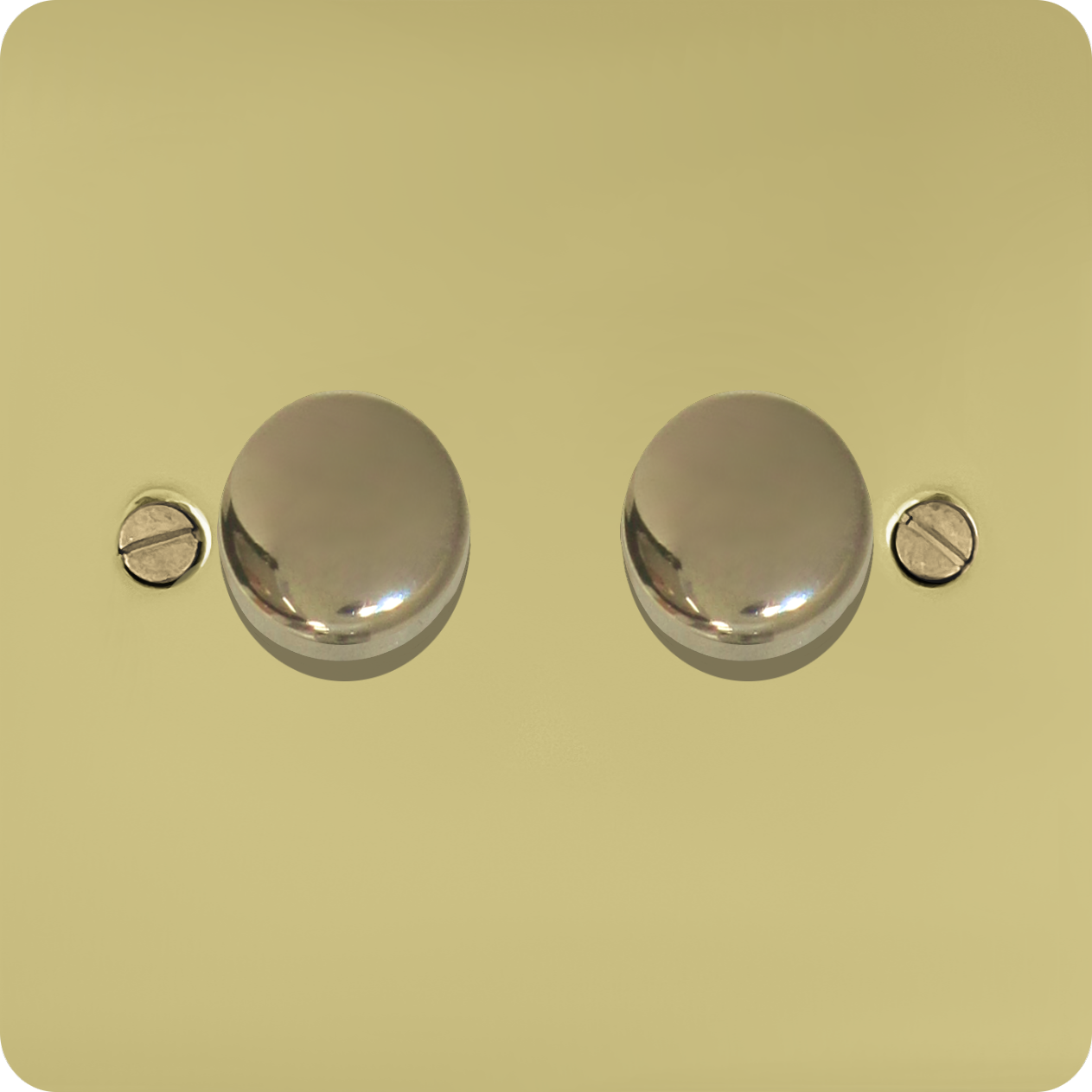

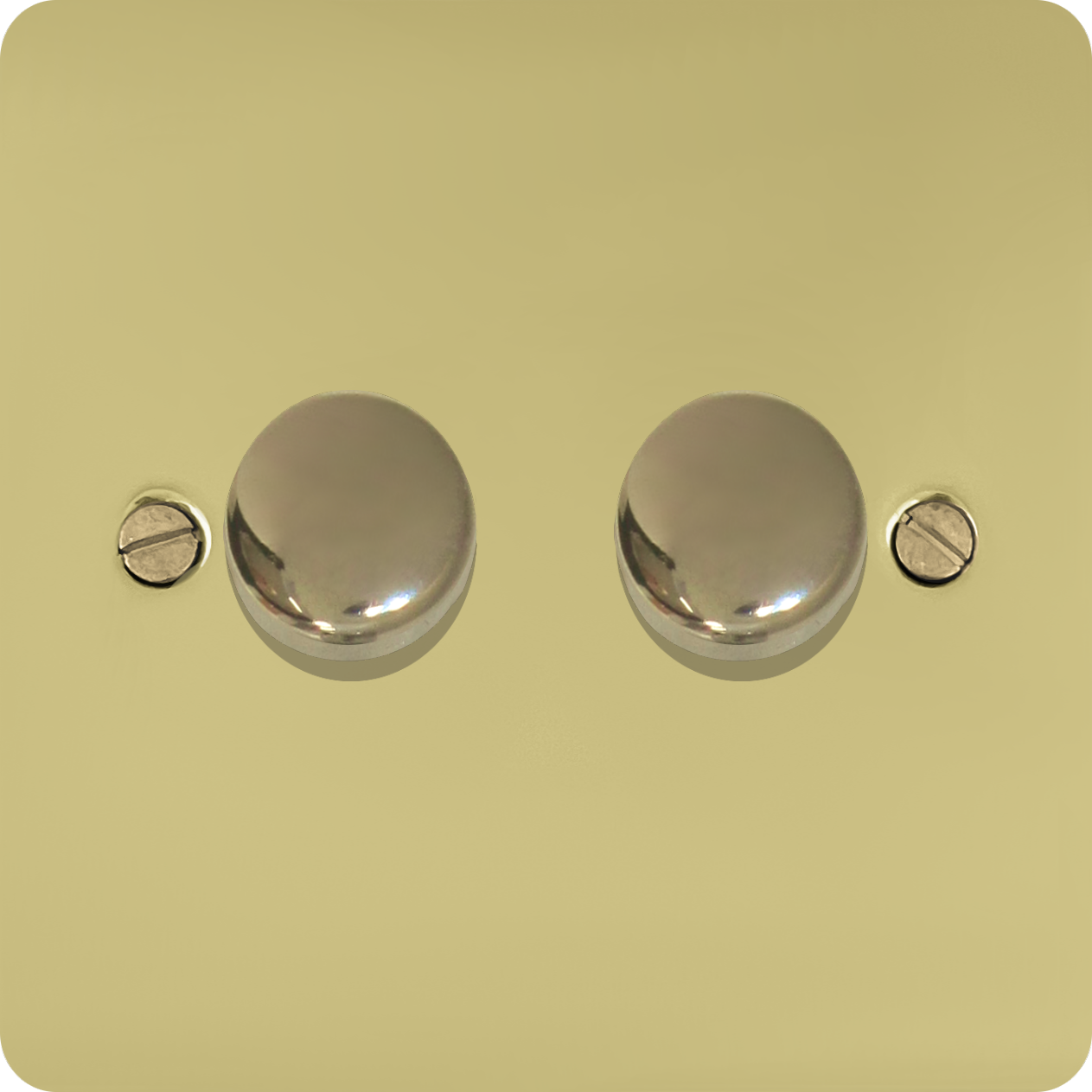

Flat Polished Brass LED Dimmer (2 Gang) - G+H FB522
This is a 2 gang LED push on/off dimmer on a flat polished brass plate.
It can dim up to 10 LED bulbs or lamps per gang. It has a maximum load capacity of 150W per gang.
Please don't forget, you will need a 35mm back box to fit this plate. We also have a number of different dimmer modules and swap outs if you're looking to mix different modules on one plate, please see our dimmer spares here
If you're looking to use a dimmer on a 2 way system, please note, 2 dimmers will not work together as this will cause a conflict in the circuitry. A dimmer will only work on a 2 way circuit if a standard rocker switch is being used on the same circuit.
Specifications
- Type: Dimmer
- 1 way and 2 way switching: Yes (with 2 way switch)
- Please note: Deeper back box required for this plate
- Amperage: 10 Amp
- Plate Material: Brass
- Style: Flatline
- Finish: Polished Brass
- Gang: 2
- LED Compatible: Yes
- Wattage (max): 5-150W (LED) | 5-400W incandescent or halogen (per Gang)
- Load: Max 10 LEDs per Gang
- Back-box depth required: 35mm
- Back-box Included: No
- Screws Included: Yes
- Screw Length: 30mm
- 2 Way: Yes (with 2 way rocker switch)
Express Delivery Available On this Item
- Product Code: FB522
- Dimensions (mm): 86L x 1W x 86H
- Availability: In Stock
- £45.00
