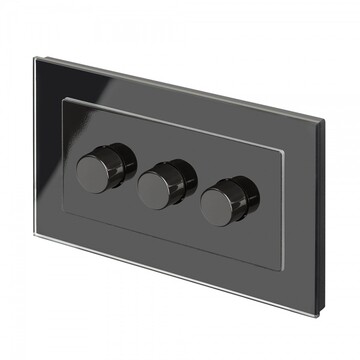

Retrotouch Black Intelligent LED Dimmer (3 Gang/Plain) - SKU02083-SM

The Retrotouch intelligent LED dimmer module is compatible with all lamp types and have been design for maximum compatibility and smooth dimming of LED lamps.


Features Include:

• Maximum Compatibility – Multi Use, compatible with a variety of loads: Incandescent, LV Halogen and LED Dimmable Lamps and all dimmer switch plates.
• Extend Lamp life – Soft start operation to pro-long the life of the lamp and dimmer.
• Functionality - Push on/off for 2-Way functionality with rotary Dimming.
• Dual Dimming Modes – Leading and Trailing edge Modes: For Electronic transformers, integral dimmable LED lamps, Iron-core transformers, motor loads and more.

• Intelligent Setup – Set min/max brightness settings to prevent flicker or flashing for a perfect dimming experience.

• Safety at heart – Auto Thermal and over load protection to protect the circuit.

SPECIFICATION

• Rotary Intelligent Dimmer (Module Only)
• Retrofit solution (Uses existing wiring)
• Max Load rating: LED lamps Max. 150W (Max. 10 lamps)
• Max Load rating: Halogen Lamps Max 400W
• (1 or 2 Way)
• Trailing edge/leading edge
• Push on/off
• Intelligent dimming setup
• Works with LEDs, Halogens and standard bulbs
• 23mm depth
• Rated Voltage: 220~240V AC (50Hz)
• Working Temperature: 0°C~40°C
• Relative Humidity: 10% - 93%
• CE & RoHS Certified
• *Please check LED lamp compatibility*
